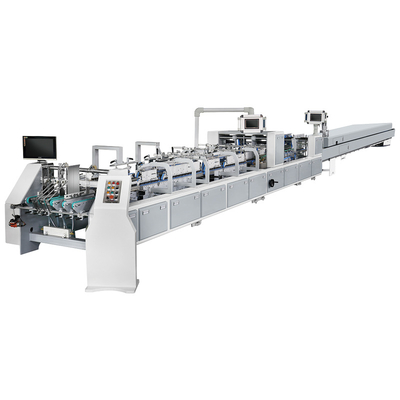

ZH-A1100 Automatic High Speed ​​Four And Six Carton Food Corner Folder Gluer

ZH-A1100 4 6 corner Folder Gluer

1. Characteristics:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

2. Main technical parameter:

3.Machine configuration

5.Box size

6. Feature

1.Feeder section

Equipped with vibrating motor.

With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.

Feeding knifes are equipped with pneumatic mechanism for smoother feeding.

Configure the display, real-time monitoring of the paper is normal

2.Paper alignment system

Automatic alignment system to correct the paper feeding,avoid the paper going to sides.

UV destroying device and dust removing device for better gluing effect.

3.Bottom lock section

Configure the spray gun system for automatic spray.

Lock-bottom assembly mechanism with high elastic hookers is of ideal design,fast and easy operation

4.Folding section

Equipped with speed variator for belts,ensure the folded boxes parallel and in good order

Fast,convenient adjustment and operation can fold boxes perfectly

The middle up and down transmission module can fold boxes synchronously or alternately

5.Pressure section

Adjust the pressure with the upper and lower belts.For flute A,B corrugated board,overlapping and jogger devices are equipped to ensure box gluing well.

After kicker is set up,whatever speed the machine runs,the kicker can automatically follow,no need to reset it.

6.Back-folding device

Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

6. Standard Price:

Option:

8.Delivery time: 40 days

9.Payment terms: 1)T/T.30% deposit in advance, and 70% balance

payment before shipment.

10.Our service

1. One year guarantee time.

2. If parts (except wearing parts) are broken within guarantee time (it is not caused by human factor), they will be changed for free.

The client should pay for the cost following:

1. Visa fee

2. Air ticket

3. Diet

4. Accommodation

5. Labor fee:100 USD/day (within guarantee time)

       150 USD/day (without guarantee time)

NOTE:ALL OF THE COST SHOULD SEND TO US BEFORE SENDING OUT ENGINEER/PARTS.

Ps:these offers are valid in 1 month.
