Caracteristicas

Especificaciones

Type: Wrapping Machine

Applicable Industries: Manufacturing Plant, Printing Shops, Advertising Company

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

Showroom Location: None

Condition: New

Application: Machinery & Hardware, Box Packaging Factory

Packaging Type: case

Packaging Material: Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V 50HZ

Dimension(L*W*H): 11000*2050*1400mm

Weight: 4500 KG

Certificación: CE

After-sales Service Provided: Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service

Warranty: 1 Year

Key Selling Points: High Productivity

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: PLC, Pressure vessel, Motor, Engine, Bearing, Gearbox, Pump

Name:: Box Making Machinery

Max paper width:: 1650mm

Min paper width:: 180mm

Product name:: Automatic Corrugated Box Folder Gluer

Used material:: B, C, E, F flute corrugated and print board

Paper thinkess:: 200 ~ 700gsm ( according to the paper width )

Speed:: 0-220m/min

Feeding way:: Automatically and continuously feeding

Adhesive:: Solute Type

Function:: Folding and Gluing

Información básica

Certificación: CE

Pago y Envío Términos

Packaging Details: Steel Frame Structure, free fumigation

Supply Ability: 10 Set/Sets per Month

Descripción de producto

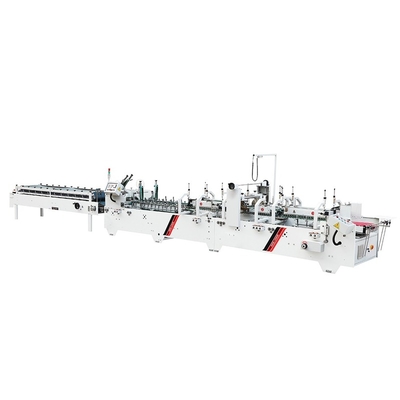

Product Appearance

SHH-1650E Paper Box Making Machine Small Carton Box Manufacturing Making Machinery Automatic Corrugated Box Folder Gluer 1650mm

Product Description

Usage

For B, C, E, F flute corrugated and printed paper card.
Pharmaceutical packing, Clothing packing box, Food packing box, Electric Hardware packing box, Stationery packing box, Cosmetic packing box, Sanitary packing box, Wine packing box, etc.
SHH-E High Speed Automatic Pre-fold and Lock Bottom Folder Gluer is a new economical box folding and gluing machine. The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the wine box, gluing side keep straight no inclined, sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom. Also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and do simple box.

Paste Box Size:

SHH-1650E High Speed Automatic Pre-fold and Lock Bottom Folder Gluer

Type of box	Amax	Amin	Bmax	Bmin	Cmin	Dmin
No-edged bottom box	700mm	150mm	1650mm	180mm	10mm	100mm
Edgde Bottom box	700mm	160mm	1500mm	200mm	12mm	120mm

Specifications for SHH-1650E Small Carton Box Manufacturing Making Machinery

Model	SHH-1650E
Used material	Carton board B, C, E, F flute and print cardboard
Box type	Standard folding box, double size box, crash lock bottom box18
Paper weight	200 ~ 700gsm (according to the paper width)
Machine speed	0~220M/min
Power	11KW 380V 50HZ
Weight	4500 kg
Overall size (m)	11 x2.05x 1.4m

Detailed Images

1.Feeding Part:
Adopted with air suction device, in place of traditional feeding by belt friction and vibrating; able to precisely control the feeding without deviation or dual paper.

2.Pre-folding ans gluing part:
Ensure the completion of 1st folding of 180°and 3rd folding of 135°, facilitate paper box opening when it is filled.

3.Crash Lock and Lock Bottom Gluing Parts

4.Folder Part and Gluing Part:
The machine second crease is 180°, and the fourth crease is 180° Length-extended design ensures a precision adjustment among right-left folding belt, all angle guide wheels, which while fits for various boxes in different materials and sizes.

5.Paper Box Taking and Pressing Part

Samples

Packing & Delivery

Pre-Sales Service:

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Warranty

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
