Factory SMARTVISION 800 Automatic Corrugated Box Cardboard Folder Gluer Glures Line Machine

1 Set
MOQ
$40,000.00(1 - 1 Sets) $30,000.00(>=2 Sets)
Precio
Factory SMARTVISION 800 Automatic Corrugated Box Cardboard Folder Gluer Glures Line Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Printing Shops
Showroom Location: United States, Italy, India, Mexico, Russia, Thailand, Algeria, South Africa
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Gearbox, Motor, Gear, Pump
Condition: New
Type: FOLDER GLURES
Automatic Grade: Automatic
Voltage: 380V
Dimension(L*W*H): 18.6 *1.6*1.9 m
Weight: 11 KG
Warranty: 1 Year
Key Selling Points: Automatic
After-sales Service Provided: Engineers available to service machinery overseas
Speed: max. 400 m/min
Inching speed: 20 m/min
Thickness of folded box: max. 12 mm
Blank width: 800 mm
After Warranty Service: Field maintenance and repair service
Local Service Location: United States
Información básica
Pago y Envío Términos
Packaging Details: Sea packing, shockproof, suitable for long-distance road and vessel transportation and various types of weather conditions.
Supply Ability: 60 Set/Sets per Month
Descripción de producto
Product Description

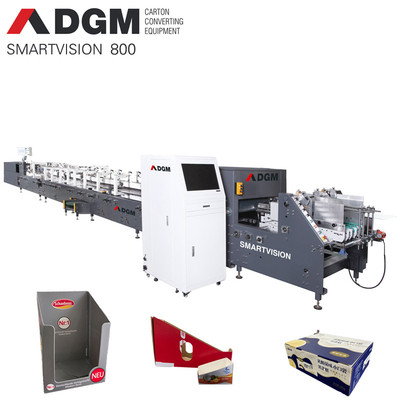

High speed automatic online inspection folding & gluing machine
SMARTVISION 800 – PC
suitable for straight-line, crash-lock bottom & double wall boxes
SMARTVISION 800 – SL
suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD 800 automatic folder gluer with standard configuration for straight-line boxes with pre-folding of 1st and 3rd creases,double wall, crash-lock bottom, 4 & 6-corner boxes. Including standard left side glue pot. Squaring device for crash lock bottom boxes. The machine maximum speed is 400 m/min. Suitable for solid board up to 800 g/m² and E, F & N flute corrugated.
Online inspection system module is equipped after side-register section, the blanks are well registered, and feed straightly into the inspection system module, it guarantees the stability of the inspection quality. It greatly reduces the labor cost, more efficient and reli-able.

1. Feeder section

* Independently motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 6 feeder belts.
* Two adjustable front feed knives.

2. Side register section

* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

3. Online inspection module

* High speed image processing system.
* Inspection software Printing Plus V5.0 English edition published.
* High speed vision image unit, equipped with Japan’s imported lens, Canada imported high/frequency COMS line scan industrial camara.
* Independent electric cabinet.

4. Pre-folding section

* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.

5. Crash lock bottom section

* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accessories for B-type lock bottom.

6. Lower gluing unit

* One lower (left side) gluing tank.
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)

7. Folding & Closing section

* Smooth and accurate folding of 2nd and 4th creases.
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).

8. Trombone section

* Upper and lower drive mechanism for lengthwise adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.

9. Press section

* Independent and motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.

10. Servo-motor of back folding device

* Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.
Material
Size Information
BOX
Company Introduction
DGM Worldwide Carton Converting Equipment
DGM Machinery provides 360° services. Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers ́s individual needs etc., but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after- sales service includes:
